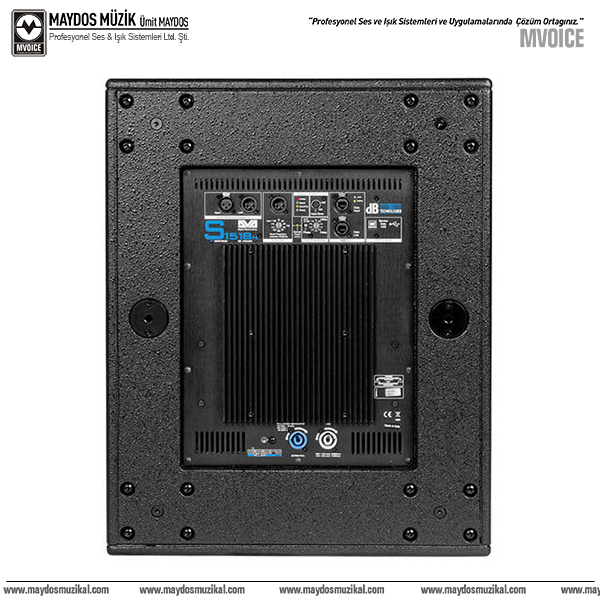

dB Technologies DVA S1518N Active Subwoofer 18″ 1500 Watt RMS
| Speaker Type | Active Bandpass Subwoofer |
| ACOUSTICAL DATA | |
| Frequency Response [+/- 3dB] | 39 – 120 Hz |
| Max SPL | 138 dB |
| Directivity | Omnidirectional, Cardiod Option with DSP setup |
| LF | 18 “ |
| Voice Coil LF | 4 “ |
| AMPLIFIER | |
| Amp Technology | Digipro® G2 |
| Amp Class | Class D |
| Power Supply | 1.5 kW SMPS |
| LF Amp | 1500 W RMS |
| Cooling | Convection |
| PROCESSOR | |
| Controller | DSP 56 bit |
| AD/DA Converter | 24bit/ 96 kHz |
| System Presets | X-Over,Delay |
| Phase | 0, 180 ° |
| Limiter | RMS, Peak, Thermal |
| Delay Option | 0-4.5 ms internal |
| Crossover Frequency LF-MF | 75-120Hz | steps of 5Hz |
| LF-Xover out slope | 24 dB/Octave |
| MECHANICS | |
| Housing | Multiplex birch plywood |
| Housing Design | Rectangular |
| Dimension WxHxD | 515 mm.640 mm. 720 mm |
| Weight | 46 kg |
